H110T-CM-A Industrial Motherboard (Thin Mini-ITX, LGA1151, Intel H110, DDR4, LVDS)

ASUS H110T-CM-A Industrie-Mainboard

H110T-CM-A Industrial Motherboard (Thin Mini-ITX, LGA1151, Intel H110, DDR4, LVDS)

Categories ,
Technical specifications
Description
Datasheet
Datasheet (05.2026)
Inquiry list

Description

  • Intel socket LGA1151 for 7th/6th Gen Core™ i7/i5/i3/Pentium®/Celeron®
  • Intel H110 chipset, DDR4 2133/1866 MHz, max. 32 GB, 2× SO-DIMM
  • 2× LAN (Realtek RTL8111H + Intel I219V), DP + HDMI + LVDS (dual display)
  • DC input 12 V/19 V, TPM SPI, 4× USB 3.0, operating temperature 0–50 °C

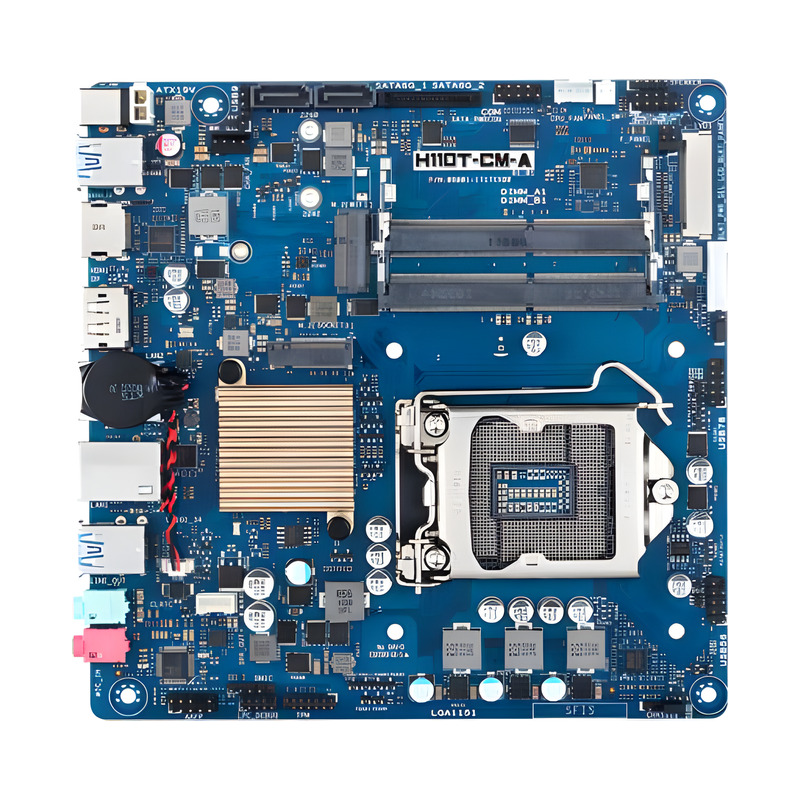

The ASUS IoT H110T-CM-A is a particularly slim industrial Thin Mini-ITX motherboard in 170×170 mm format with Intel LGA1151 socket. The Thin Mini-ITX form factor enables use in extremely compact all-in-one industrial PCs and embedded systems with minimal installation height.

Two SO-DIMM slots take up to 32 GB of DDR4 (2133/1866 MHz). Dual-display operation via DisplayPort, HDMI and LVDS (40-pin header for direct panel connection). Two M.2 connectors (M-Key for storage, E-Key for WLAN/BT) and two SATA ports provide flexible storage options.

Two Gigabit LAN ports (Realtek RTL8111H and Intel I219V with WOL/PXE) as well as an internal RS232 serial header enable network and serial communication. The 12 V or 19 V DC input makes the board suitable for industrial panel PCs without a conventional power supply unit. TPM SPI onboard.

Operating temperature range 0–50 °C, CE and FCC certified.

Technical data

Environment
Mechanical
Dimensions (W x D x H) 170 × 170 mm
Power / Battery
Serial / Parallel Ports
SATA / USB
Audio / LAN
Video
Size / Resolution / Luminance
Viewing Angles
Touchscreen
Power Requirement
Power Requirement DC 12 V / 19 V
OS Support
OS Support Windows 7 / 8.1 / 10 (64-bit), Linux (Ubuntu, RedHat, Fedora, OpenSUSE)
LCD Display
CPU / Chipsets / Graphics
CPU Intel LGA1151, 7th/6th Gen Core™ i7/i5/i3/Pentium®/Celeron®, max. 65W TDP
Chipset Intel H110
Graphics Integrated graphics (CPU), DP + HDMI + LVDS
Storage 2× SATA 6Gb/s, 1× M.2 M-Key, 1× M.2 E-Key
Memory
Memory DDR4 2133/1866 MHz, max. 32 GB, 2× SO-DIMM
LAN / WLAN
LAN 2× Gigabit LAN (Realtek RTL8111H + Intel I219V WOL/PXE)
WWAN / Bluetooth
Expansion
IPC 1
Expansion IPC
Motherboard
Qualification
Certification CE, FCC
I/O
Serial Port 1× RS232 (internal)
USB Port 4× USB 3.0 (rear panel)
LAN 2× Gigabit LAN (Realtek RTL8111H + Intel I219V WOL/PXE)
Video Port DisplayPort (4096×2160@60Hz), HDMI, LVDS (up to 1920×1200@60Hz)
TPM 1× SPI TPM Header
Audio Realtek ALC897-VA2 High Definition Audio
Expansion Bus 1× M.2 M-Key (2242/2260), 1× M.2 E-Key (2230)
Wi-Fi Bluetooth M.2 E-Key for WLAN/BT (module optional)
Fan CPU fan header (PWM), chassis fan header (PWM+DC)
Environmental
Operating Temp. 0–50 °C
Storage Temp. -40–85 °C
Relative Humidity 5–95 %
Touch Screen
Storage
