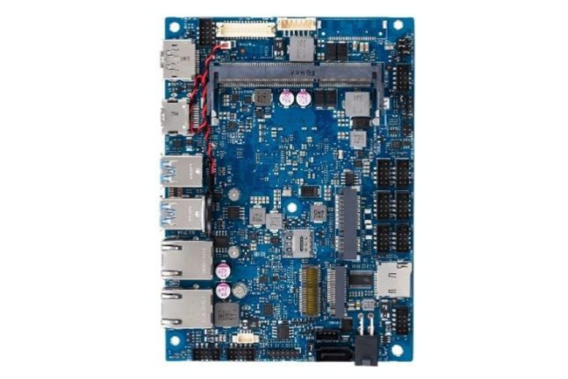

3.5” form factor, Intel® Apollo Lake-I N4200E, DDR3L SO-DIMM, DP, HDMI,
LVDS (eDP optional), Dual-LAN, Multiple COM, 12-24V DC
| PROCESSOR SYSTEM | CPU | Intel® Apollo Lake-I, N4200E |
| MAX. SPEED | 1.1GHz Quad-core (Turbo 2.5GHz) | |
| L2 Cache | 2MB | |
| CHIPSET | Integrated | |
| MEMORY | Technology | DDR3L 1866MHz, non-ECC, un-buffered memory |
| Max. | 8GB | |
| Socket | 1 x SO-DIMM | |
| Display | Controller | Intel HD Graphics 505 |
| HDMI | 1, Supports HDMI 1.4b up to 3840 x 2160 @ 30 Hz | |
| Display Port | 1, Supports DP 1.2 up to 4096 x 2160 @ 60 Hz | |
| LVDS | 1, Supports 1920 x 1080 at 60 Hz resolution in dual LVDS bus mode | |
| eDP (optional) | 1, Support eDP 1.3 x4 lanes, Up to 3840×2160 @ 60 Hz | |
|
Multi Display |
DP+HDMI+LVDS
Multi-VGA output support :DP/HDMI/LVDS ports Supports up to 3 displays simultaneous under OS |
|
| EXPANSION SLOT | Mini PCIe | 1 x Full-Length Mini PCIe slot with on-board Nano-SIM socket |
| M.2 | 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device 1 x M.2 Socket 3 with M key, type 2242 (SATA mode) | |
| others | 1 x Micro SD Card slot (on-board) | |
| ETHERNET | Speed | 10/100/1000Mbps |
| Controller | 2 x Intel® I210IT | |
| Connector | 2 x RJ-45 | |
| AUDIO | Codec | Realtek ALC887-VD2 High Definition Audio CODEC |
| Connector | Line-out, Mic-in | |
| STORAGE | SATA port | 1x SATA Gen 3.0, up to 6Gb/s |
| Rear I/O | Display Port | 1 |
| HDMI | 1 | |
| USB3.2 Gen1 Type-A ports | 4 | |
| Ethernet | 2 | |
| Internal Connector | COM header | 6 (2 x RS-232/422/485, 4 x RS-232) |
| USB2.0 | 1, support additional 2 x USB2.0 connectors | |
| Chassis fan header | 1 | |
| Chassis intrusion header | 1 | |
| Front panel audio header (AAFP) | 1 | |
| System panel header | 1 | |
| Clear CMOS jumper | 1 | |
| SATA port 6g | 1 | |
| SATA power header | 1 | |
| LPC Debug header | 1 | |
| SMBus header | 1 | |
| I2C header | 1 | |
| power connector | 1(4 pin) | |
| GPIO header (8 bit) | 1 | |
| Dual 24bit LVDS | 1 | |
| DIO (8 bit) | 1 | |
| Watchdog Timer | HW | 1 |
| Security | TPM | 1 x SPI TPM header |
|
POWER |
Power Type | DC power input |
| Voltage | 12V-24V | |
|
Operating System |
Microsoft Windows | Windows® 10 (64bit ) / Win10 Iot Enterprise |
| Linux | Ubuntu, RedHat Enterprise, Fedora Workstation | |
|
ENVIRONMENT |
Operating Temperature | -20~60° C |
| Non-Operating Temperature | -40~85° C | |
| DIMENSION | Form Factor | 3.5”, 146 x 105 mm |
|
Certification |
Safety | CE, FCC |
| EMC | UL, CCC |
| Model Name | Description |
| N420S-IM-AA | 3.5” form factor, Atom® N4200 Processor, DDR3L SO- DIMM, DP, HDMI, LVDS, Dual-LAN, Multiple COM, 12- 24V DC |
| Part Number | Description |
| 14011-03700400 | COM Port Cable, 1 Port, 28mm |
| 14013-00260000 | SATA cable with SATA power |
| 14011-03740000 | Power Button Cable with LED |
| 14011-03750000 | USB 2.0 Cable, 2 ports, 70mm |
| Model Name | Description |
| 14013-00260000 | SATA 22P TO SATA 7P+4P 15+12CM//ASAP/L67ST107- DT-R |
