The IMB-X1316 brings Intel Core Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen processors to the W680 workstation chipset: ECC-capable DDR5 memory up to 192 GB, two PCIe Gen5 slots, eight SATA3 ports and vPro in Micro-ATX format.

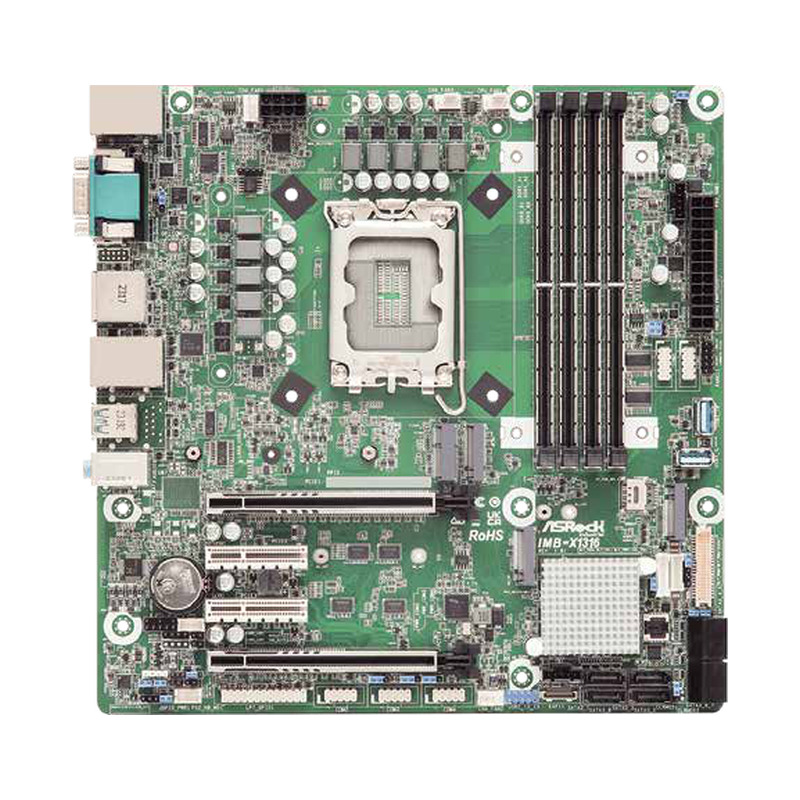

The ASRock Industrial IMB-X1316 is an industrial Micro-ATX motherboard (24.4 x 24.4 x 3.6 cm) with the Intel W680 chipset and LGA 1700 socket. It supports Intel Core Series 2 (Bartlett Lake-S) as well as 14th, 13th and 12th Gen processors (Raptor Lake-S Refresh, Raptor Lake-S, Alder Lake-S) with up to 125 W TDP.
Four 288-pin Long-DIMM slots take up to 192 GB of DDR5-4400/5600 in dual-channel mode (48 GB per module), optionally with ECC error correction. Storage is provided by two M.2 Key M slots (PCIe Gen4 x4 and Gen3 x4) and eight SATA3 ports with Intel VMD RAID 0/1/5/10.
The integrated Intel UHD Graphics drives up to four displays via two HDMI 2.0b, one DisplayPort 1.4a and LVDS. Networking is handled by an Intel I226LM with 2.5 GbE and vPro and an Intel I210AT with 1 GbE. USB includes one USB 3.2 Gen2x2 Type-C, seven USB 3.2 Gen2 and four USB 2.0, plus six COM ports.
Expansion is provided by two PCIe Gen5 slots (single x16 or x8/x8, riser x8/x8), two PCIe x4 (Gen4), one M.2 Key E for WLAN and one M.2 Key B with SIM socket for 4G/5G. TPM 2.0 is onboard, power is supplied via ATX (24+8-pin), at operating temperatures from -20 to +70 degrees Celsius.
