MSI IPC: MS-98H9 ATX Kaby Lake Skylake PCI

Description

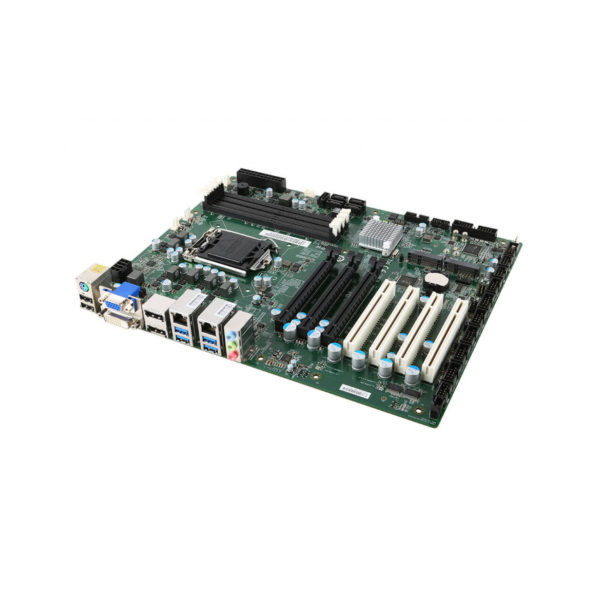

There is no need to compromise here – with the MS-98H9 industrial motherboard exclusively from MSI

  • Chipset: Intel C236 / Q170 / H110 for Skylake and Kaby Lake CPUs, 6./7. Gene.
  • Fast DDR4 memory

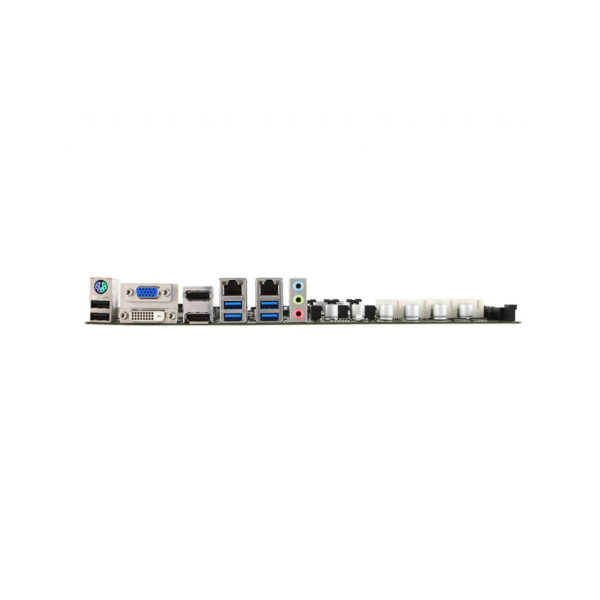

  • Integrated Intel HD graphics via DVI, 2x DisplayPort and VGA
  • 2x Gigabit LAN, 6x COM, 12x USB
  • 4x PCI, 1x PCIe x16, 1-2x PCIe x4

We also offer this motherboard in the complete computer, wired, installed with operating system and of course tested with the high Alptech quality standard. Ask us: +49 (0) 6171-9799110 or info@alptech.de

There is no need to compromise here. With the MS-98H9 industrial motherboard exclusively from MSI, we offer the right motherboard for your latest-generation high-end computer, if you still need to use up to 4 PCI cards.

It can run up to Intel Xeon class or Intel Core i3 / i5 / i7 server CPUs as well as Pentium and Celeron with one of the newest CPU generation (Intel 7th and 6th generation, Kaby Lake and Skylake). It also offers high-resolution graphics, up to 4096 x 2304 pixels per display port. The PCIe slots allow additional possibilities to expand the computer on request.

We also offer this motherboard in the complete computer. Wired, installed with operating system and of course tested with the high Alptech quality standard.

Ask us: +49 (0) 6171-9799110 or info@alptech.de

Technical data

Environment
Min Operating Temperature -10
Max Operating Temperature 60
Mechanical
Certification CE, FCC, VCCI (Japan)
Power / Battery
Input Voltage ATX
Serial / Parallel Ports
RS-232 4
RS-232/422/485 2
Parallel 1
SATA / USB
SATA 3.0 5
mSATA 1
USB 2.0 6
USB 3.0 6
Audio / LAN
Audio Line-in, Line-out, Microphone Line
LAN (RJ-45) 2
Video
Display Port 2
DVI 1
VGA 1
Size / Resolution / Luminance
Viewing Angles
Touchscreen
Power Requirement
OS Support
LCD Display
CPU / Chipsets / Graphics
CPU Intel Core i3 / i5 / i7 6th Gen. Skylake, Intel Core i3 / i5 / i7 7th Gen. Kaby Lake, Intel Xeon
Chipsets Intel H110, Intel Q170, Intel C236
Graphics Intel HD Graphics
Memory
Memory Slot 4x DIMM DDR4
Memory Speed 2133
Memory Capacity 64
LAN / WLAN
LAN Chipset Intel I210-AT, Intel I219-LM
WWAN / Bluetooth
Expansion
PCI 4
PCIe x16 1
mPCIe x1 1
IPC 1
Expansion IPC
PCIe x4 2
Motherboard
Form Factor ATX
Qualification
I/O
Environmental
Touch Screen
Storage
