The iBOX-225H is a fanless embedded Box PC of the iBOX Ultra 200 series with Intel Core Ultra 5 225H (Arrow Lake-H, 4P+8E), up to 96 GB DDR5-6400, two 2.5 GbE ports with vPro, USB4/Thunderbolt 4 and quad display.

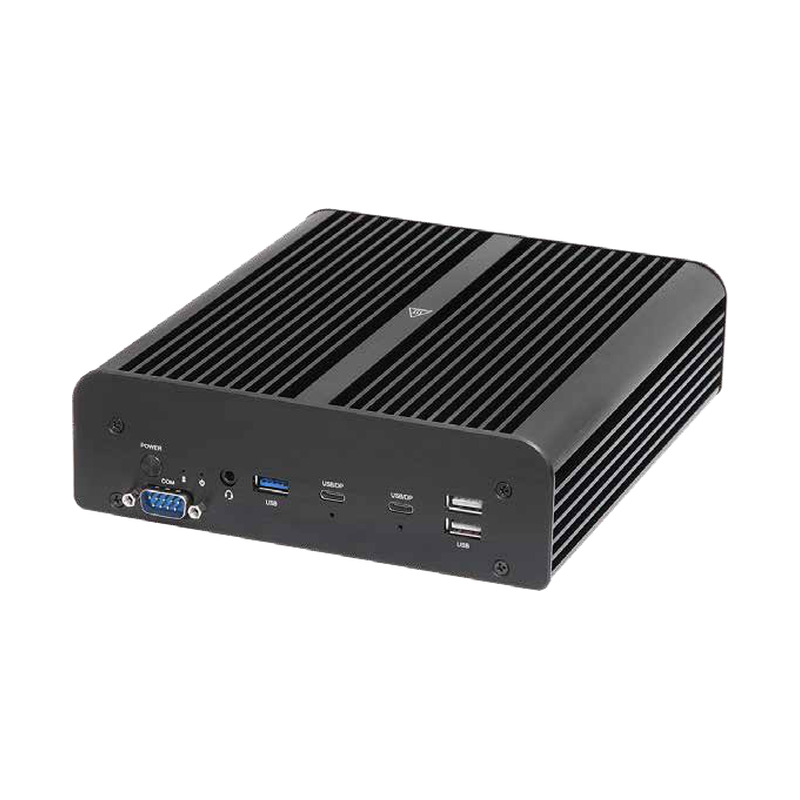

The ASRock Industrial iBOX-225H is a fanless embedded Box PC from the iBOX Ultra 200 series with the Intel Core Ultra 5 225H (Arrow Lake-H, 4 Performance and 8 Efficient cores) and integrated Intel graphics. The series supports Intel vPro.
Two 262-pin CSO-DIMM slots take up to 96 GB of DDR5-6400 in dual-channel mode. For mass storage, two M.2 Key M with PCIe Gen4 x4 (2242 and 2242/2280 respectively) with Intel VMD RAID 0/1 and one SATA3 port are available; one M.2 Key E (2230) optionally accepts a WLAN module.
Up to four displays run via two HDMI 2.1 TMDS, DisplayPort 2.1 via USB4 and DisplayPort 1.4a via Type-C. In addition, there are 1x USB4/Thunderbolt 4, 1x USB 3.2 Gen2x2 Type-C, 3x USB 3.2 Gen2, 2x USB 2.0, one COM port (RS-232/422/485) and two 2.5 GbE ports (Intel I226LM with vPro and I226V). An OOB function for remote power on/off/reset can optionally be fitted.
The aluminium housing (200 x 176.6 x 53.6 mm, 3 kg) is passively cooled and designed for -20 to +50 °C at 0.5 to 0.8 m/s airflow. Intel PTT, a watchdog timer and a wide-range input of 12 to 24 V DC are on board; mounting is via VESA, wall or DIN rail.
