The iBOX-6305E is a fanless embedded Box PC of the iBOX-1100 series with Intel Celeron 6305E (11th Gen Tiger Lake-UP3), up to 64 GB DDR4, USB4/Thunderbolt 4, quad display and an aluminium housing for VESA, wall and DIN rail mounting.

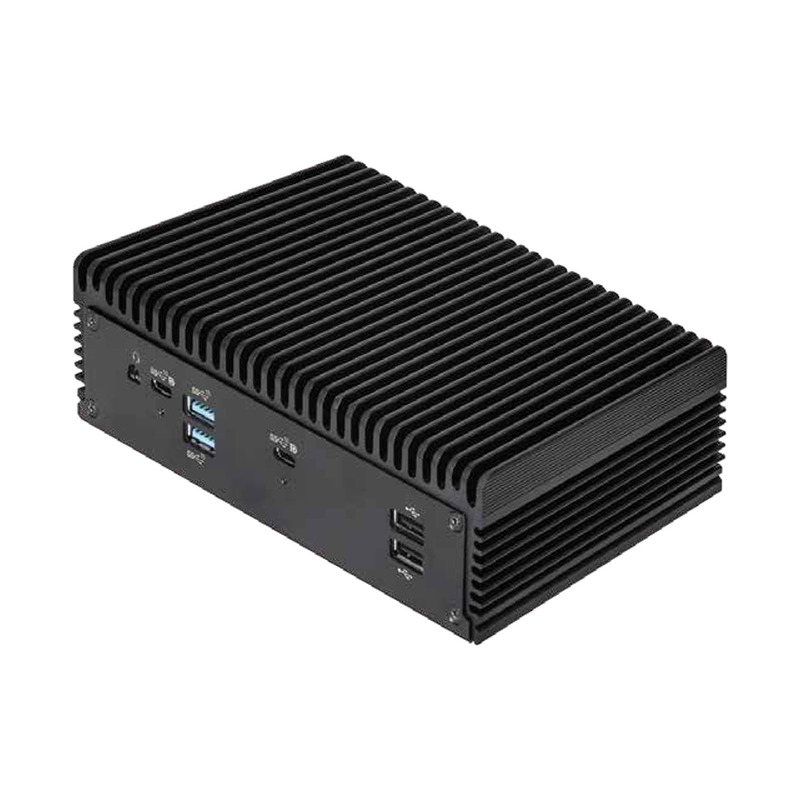

The ASRock Industrial iBOX-6305E is a fanless embedded Box PC from the iBOX-1100 series. It runs on the Intel Celeron 6305E (dual-core, 11th Gen Tiger Lake-UP3, 1.8 GHz) with integrated Intel UHD Graphics, making it the entry-level variant of the series for cost-sensitive industrial and signage applications.
Two SO-DIMM slots take up to 64 GB of DDR4-3200 in dual-channel mode. Mass storage is provided by one M.2 Key M (2242/2260/2280) with PCIe Gen4 x4 or SATA3 and one SATA3 port; one M.2 Key E (2230) optionally accepts a WLAN/Bluetooth module.
Up to four displays are driven via HDMI 2.0a, DisplayPort 1.4 and two DP 1.4 outputs via Type-C. Front and rear together offer 1x USB4/Thunderbolt 4, 5x USB 3.2 Gen2, 2x USB 2.0, one COM port (RS-232) and Gigabit and 2.5 Gigabit LAN (Intel I219V and I225LM/V).
The aluminium housing (171.8 x 109.45 x 50.05 mm, 1.6 kg) is passively cooled and designed for -20 to +50 °C at 0.5 to 0.8 m/s airflow. TPM 2.0, watchdog timer and AT/ATX power-on mode are on board; power is supplied via a 19 V/90 W power adapter.
