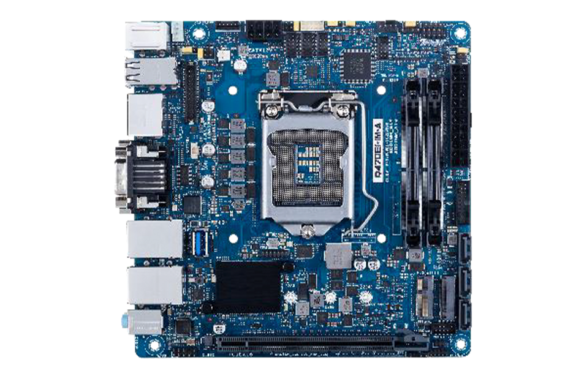

Mini-ITX, LGA1200 socket for the 10th Gen CPU, Q470E chipset, 2*SO-DIMM. 1*PCIe x16, 2*DP, DVI-D, LVDS/ eDP, 2*M.2 slot, USB 3.2 Gen2, USB Type C
|
Processor System |
CPU |
LGA1200 Socket for The 10th Generation Intel® Core™ i9/ i7/ i5/ i3/ Pentium®
/Celeron® Processors Supports 14nm CPU |
| Max. 65W TDP | ||
| Chipset | Intel® Q470E Chipset | |
|
Memory |
Technology | DDR4 2933/2666/2400/2133 MHz |
| Max. | Overall: 64GB, Per Module:32GB | |
| Socket | 2 x SO-DIMM | |
|
Display |
Display Port | 2, Supports DP 1.4 |
| DVI-D | 1 | |
| eDP/LVDS | 1 x Header (Support either eDP or LVDS ; switched by BIOS) | |
|
Expansion Slot |
PCIe | 1 x PCIe 3.0/2.0 x16 Slot (Bifurcation Support: 16x to 8x+8x or 8x+4x+4x) |
| M.2 | 1 x M.2 Socket 1 with E key, Type 2230 for WIFI/BT device (PCIe & CNVi)
1 x M.2 Socket 3 with M key, Type 2242/2260/2280 (PCIe x4 & SATA mode) |
|
|
Ethernet |
Speed | 10/100/1000 Mbps |
| Controller | 1 x Intel® I210AT, 1 x Intel® I219LM | |
| Teaming | Yes | |
| Connector | 2 x RJ-45 | |
| Audio | Codec | Realtek ALC887 High Definition Audio |
| Connector | Line-Out, Line-In | |
| Storage | SATA port | 3 x SATA Gen 3.0, Up to 6Gb/s |
| M.2 | 1 x M.2 Socket 3 with M key, Type 2242/2260/2280 (PCIe x4 & SATA mode) | |
|
Rear I/O |
Display Port | 2 |
| DVI-D | 1 | |
| USB3.2 Gen2 | 3 (2*Type A, 1*Type C) | |
| USB3.2 Gen1 | 1 (Type A) | |
| USB2.0 | 4 (Type A) | |
| Ethernet | 2 x RJ45 | |
| Serial Port | 1 (RS232/422/485) | |
| Audio jack | 2 | |
| PS/2 | 1 x Keyboard, 1x Mouse | |
|
Internal Connector |
Serial Port Header | 4 x COM Header (1 x RS232/422/485, 3 x RS232) |
| USB3.2 Gen1 | 1 x USB3.2 Gen1 Stick Connector | |
| 1 x Header Support Additional 2 x USB3.2 Gen1 Ports | ||
| USB2.0 | 1 x Header Support Additional 2 x USB2.0 Ports | |
| CPU Fan/ Chassis Fan | 1 x Header (PWM Mode) / 1 x Header (PWM Mode) | |
| Disable ME | 1 x Header | |
| LVDS/ eDP selection | 1 x Header | |
| I2C | 1 x Header | |
| Panel SW | 1 x Header | |
| Front Panel Audio (AAFP) | 1 x Header | |
| System Panel | 1 x Header (10-1 Pin) | |
| SP/DIF | 1 x Header | |
| Chassis Intrusion | 1 x Header | |
| Speaker | 1 x Header | |
| Clear CMOS | 1 x Header | |
| LPC Debug | 1 x Header | |
| GPIO | 1 x Header (8 Bit) | |
| AT/ATX Select | 1 x Header | |
| Power Connector | 1 x 8-pin ATX Power Connector, 1 x 24-pin ATX Power Connector | |
| Watchdog Timer | H/W | YES |
| Security | TPM | 1 x SPI TPM header |
|
Power |
IAMT/vPRO | Yes |
| Power Type | ATX
12V DC-IN (Supported by additional cable) |
|
| Operating System | Microsoft Windows | Windows® 10 (64bit ) / Win10 IoT Enterprise |
| Linux | Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE | |
|
Environment |
Operating Temperature | 0~60° C |
| Non-Operating Temperature | -40~85° C | |
| Relative Humidity | 0%~85% | |
| Dimension | Form Factor | Mini-ITX, 170 x 170 mm |
| Certification | Safety | CE, FCC |
| Model name | Part number | Description |
| Q470EI-IM-A | 90ME02M0* | LGA1200,Q470E, 2*DP,MB |
* The part number might vary for different regulations and package. Please consult the TPM in your region for exact 90PN.
| Part number | Description | Quantity |
| 13020* | IO shield | 1 |
| 14013* | SATA 6G CABLE | 1 |
| 13ME0* | Screw pack | 1 |
| 13ME0* | HEX pack | 1 |
* The part number might vary due to part number revision.
