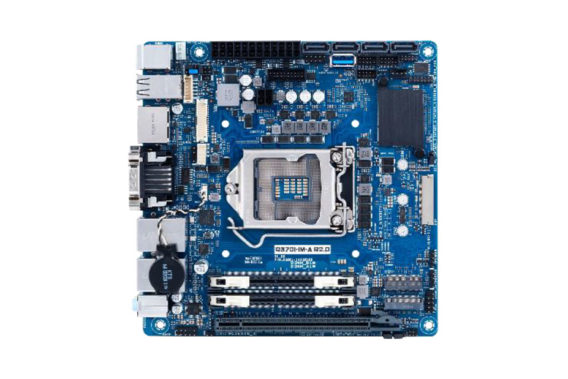

Mini-ITX, LGA1151 socket for the 9th/8th Gen CPU, Q370 chipset, 2*SO-DIMM.
1*PCIe x16, 2*DP, DVI-D, LVDS, eDP, 2*M.2 slot
|
Processor System |
CPU | LGA1151 socket for the 9th/8th Generation Intel® Core™ i 7/ i5/ i 3/ Pentium® / |
| Celeron® processors supports 14nm CPU, Max. 65W TDP | ||
| CHIPSET | Intel® Q370 chipset | |
|
Memory |
Technology | DDR4 2666/2400/2133 MHz |
| Max. | 64GB | |
| Socket | 2 x SO-DIMM | |
|
Display |
DVI-D | 1, Supports up to 1920 X 1200 @ 60 Hz |
| Display Port | 2, Supports DP 1.2a up to 4096 x 2160 @ 60 Hz | |
| LVDS | 1, Supports up to 1920 x1200 @ 60Hz | |
| Embedded Display Port | 1, 2 lanes supported (co-lay with LVDS), Supports up to 1920 x1200 @ 60Hz | |
| Multi Display | DVI-D+DP+LVDS, DP+DP+LVDS, DP+DP+DVI-D, DVI-D+DP+eDP, DP+DP+eDP | |
|
Expansion Slot |
PCIe | 1 x PCIe 3.0/2.0 x16 s lot |
| M.2 | 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device (support Intel® CNVi,PCIe)
1 x M.2 Socket 3 with M key, type 2242/2260/2280(PCIe & SATA mode) |
|
|
Ethernet |
Speed | 10/100/1000Mbps |
| Controller | 1 x Intel® i219LM, 1 x Intel® i211AT | |
| Connector | 2 x RJ-45 | |
| Audio | Codec | Realtek ALC887-VD2 High Definition Audio |
| Connector | Line-Out, Line-In | |
| Storage | SATA port | 4 x SATA Gen 3.0, up to 6Gb/s |
|
Rear I/O |
DVI-D | 1 |
| Display Port | 2 | |
| USB3.2 Gen1 | 4 | |
| USB 2.0 | 4 | |
| Ethernet | 2 | |
| Serial Port | 1(RS232/422/485) | |
| Audio jack | 2 | |
| PS/2 | 1 x Keyboard Port, 1 x Mouse Port | |
|
Internal Connector |
Serial Port | 3 (RS232) |
| USB3.2 Gen1 | 1 X Header Support Additional 2 X USB3.2 Gen1 Connectors , 1 X Stick Socket | |
| USB2.0 | 1 X Header Support Additional 2 X USB2.0 Connectors | |
| CPU Fan Connector | 1 (PWM Mode) | |
| Chassis Fan Header | 1 (PWM+DC Mode) | |
| Chassis Intrusion Header | 1 | |
| Front Panel Audio Header
(AAFP) |
1 | |
| System Panel Header | 1(10-1 Pin) | |
| Clear CMOS Jumper | 1 | |
| Speaker Connector | 1(4-pin) | |
| LPC Debug Header | 1 | |
| S/PDIF Header | 1 | |
| I2C Header | 1 | |
| GPIO Header | 1 (8 Bit) | |
| AT/ATX Select Header | 1 | |
| Power Connector | 1 X 4-pin ATX Power Connector, 1 X 24-pin ATX Power Connector |
| Watchdog Timer | H/W | YES |
| Security | TPM | 1 x SPI TPM header |
| Power | Power Type | both ATX mode and DC in |
| Voltage | DC in 12V | |
| Operating System | Microsoft Windows | Windows® 10 (64bit ) / Win10 IoT Enterprise |
| Li nux | Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE | |
|
Environment |
Operating Temperature | 0~60° C |
| Non-Operating Temperature | -40~85° C | |
| Relative Humidity | 0%~85% | |
| Dimension | Form Factor | Mini-ITX, 170 x 170 mm |
| Certification | Safety | CE, FCC |
