Description

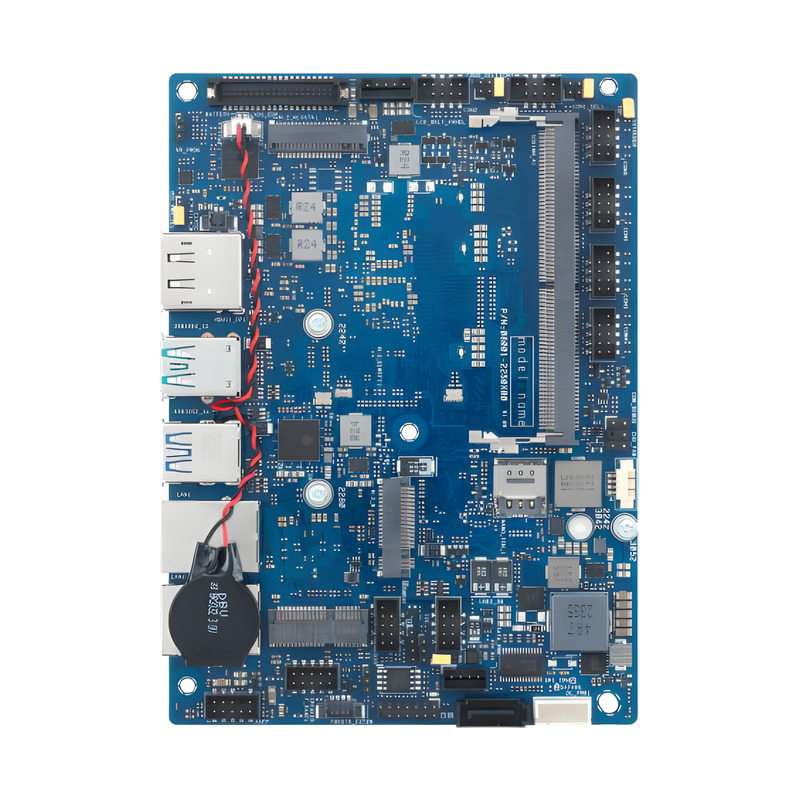

The ASUS IoT X7433RE-IM-A is an industrial 3.5-inch SBC with Intel® Atom® X7433RE (Amston Lake, 4 cores, 9 W TDP, up to 3.4 GHz), DDR5-4800 and integrated AI acceleration via Intel® Deep Learning Boost.

5G/LTE, mixed dual LAN (1G + 2.5G), WLAN 5/6/6E and an extended operating temperature range of −20 °C to 70 °C offer excellent connectivity for demanding IoT applications.

Processor & platform: The X7433RE-IM-A uses the Intel® Atom® X7433RE (Amston Lake SoC) with 4 cores, 9 W TDP, 1.5 GHz base frequency and up to 3.4 GHz turbo clock. Integrated AI acceleration via Intel® Deep Learning Boost. Intel® UHD Graphics supports 4K/60 Hz and triple display via HDMI 2.0, DP 1.4 and eDP 1.2/LVDS.

Memory & storage: DDR5-4800 MHz SO-DIMM, in-band ECC (IBECC), max. 16 GB. Storage: 1× SATA Gen 3.0 (6 Gb/s), M.2 M-Key 2242/2280 (SATA/PCIe×1), M.2 E-Key 2230 (WLAN 5/6/6E/BT), M.2 B-Key 3042/3052 (4G/5G + Nano-SIM).

I/O & connectivity: Rear: 1× HDMI, 1× DP, 2× USB 3.2 Gen2 (10 Gb/s) + 2× Gen1 (5 Gb/s), 2× RJ-45 (Intel® i210IT 1G + Intel® i226IT 2.5G). Internal: 6× COM (2× RS-232/422/485, 4× RS-232), 2× USB 2.0, 8-bit GPIO, SMBus, I²C, chassis fan. Audio: Realtek® ALC897 + 3 W AMP.

Industrial features: Operating temperature −20 °C to 70 °C, storage −40 °C to 85 °C, relative humidity 10–95 %. DC 9–36 V. TPM: SPI header + Intel® PTT, OS Guard, Boot Guard. Windows® 10/11 IoT Enterprise, Ubuntu, RedHat, Fedora. Certifications: CB, BSMI, CE-LVD; CE, FCC, VCCI, BSMI, RCM; GA (RoHS).

Technical data

Environment
Mechanical
Dimensions (W x D x H) 146 × 105 mm (3.5-inch form factor)
Power / Battery
Serial / Parallel Ports
SATA / USB
Audio / LAN
Video
Size / Resolution / Luminance
Viewing Angles
Touchscreen
Power Requirement
Power Requirement DC input 9–36 V, 4-pin power connector
OS Support
OS Support Windows® 10/11 IoT Enterprise (64-bit); Ubuntu; RedHat Enterprise; Fedora Workstation
LCD Display
CPU / Chipsets / Graphics
CPU Intel® Atom® X7433RE (Amston Lake), 4 cores, 1.5 GHz base / 3.4 GHz turbo, 9 W TDP
Chipset Intel® Amston Lake SoC
Graphics Intel® UHD Graphics; HDMI 2.0 (4K/60 Hz), DP 1.4 (4096×2304/60 Hz), eDP 1.2/LVDS
Storage 1× SATA Gen 3.0 (6 Gb/s); M.2 M-Key 2242/2280 (SATA/PCIe×1)
Memory
Memory DDR5 4800 MHz SO-DIMM, max. 16 GB, in-band ECC (IBECC)
LAN / WLAN
LAN 1× Intel® i210IT 1 GbE + 1× Intel® i226IT 2.5 GbE (WOL/PXE), 2× RJ-45
WWAN / Bluetooth
Expansion
IPC 1
Expansion IPC
Motherboard
Qualification
Certification CB, BSMI, CE-LVD (Safety); CE, FCC, VCCI, BSMI, RCM (EMC); GA (RoHS)
I/O
Serial Port 6× (2× RS-232/422/485, 4× RS-232)
USB Port 2× USB 3.2 Gen2 (10 Gb/s) + 2× Gen1 (5 Gb/s) external; 2× USB 2.0 internal
LAN 1× Intel® i210IT 1 GbE + 1× Intel® i226IT 2.5 GbE (WOL/PXE), 2× RJ-45
Video Port 1× HDMI 2.0 (4K/60 Hz), 1× DP 1.4 (4096×2304/60 Hz), 1× eDP 1.2 / LVDS
TPM 1× SPI TPM header; Intel® PTT
Audio Realtek® ALC897 HD Audio, 3 W AMP
Expansion Bus M.2 M-Key 2242/2280; M.2 E-Key 2230; M.2 B-Key 3042/3052
Wi-Fi Bluetooth M.2 E-Key 2230 (PCIe/USB) for WLAN 5/6/6E/BT; M.2 B-Key 3042/3052 + Nano-SIM (4G/5G)
Fan 1× chassis fan header (PWM+DC)
Environmental
Operating Temp. −20 °C to 70 °C
Storage Temp. −40 °C to 85 °C
Relative Humidity 10 % to 95 %
