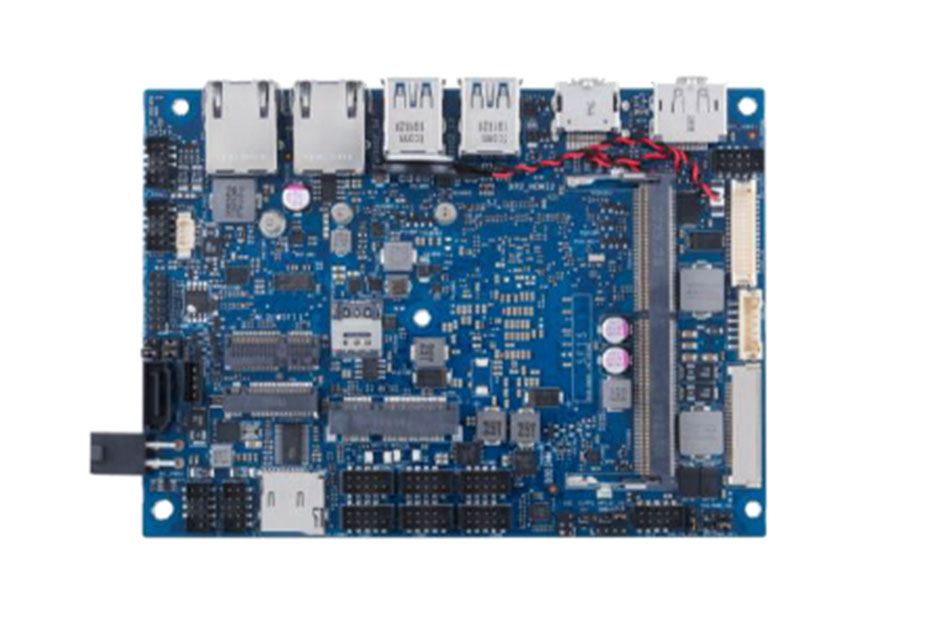

3.5” form factor, AMD® Ryzen Embedded R1505 Processor, DDR4 SO-DIMM, DP, HDMI, LVDS, Dual-LAN, Multiple COM, 12-24V DC
| Processor System | CPU | AMD® Ryzen Embedded R1505 Processor |
| Memory | Technology | DDR4 2400 MHz |
| Max. | 16 GB | |
| Socket | 1 x SO-DIMM | |
| Display | HDMI | 1, Supports HDMI 1.4 up to 4096 x 2160 @ 24 Hz |
| Display Port | 1, Supports DP 1.2a up to 4096 x 2304 @ 60 Hz | |
| LVDS | 1, Supports 24 bits up to 1920 x 1200 @ 30Hz (colay with eDP) | |
| Embedded Display Port | 1, Supports up to 4096 x 2304 @ 60 Hz (co-lay with LVDS) | |
| Multi Display | DP+HDMI+LVDS, DP+HDMI+eDP | |
| Expansion Slot | Mini PCIe | 1 x Full-Length Mini PCIe slot with on-board Nano-SIM socket |
| M.2 | 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device and Intel® CNVi
1 x M.2 Socket 3 with M key, type 2242(PCIe & SATA mode) |
|
| others | 1 x Micro SD Card slot (on-board) | |
| Ethernet | Speed | 10/100/1000Mbps |
| Controller | 1 x Intel® i219V, supports WOL/PXE
1 x Intel® i211AT, supports WOL/PXE |
|
| Connector | 2 x RJ-45 | |
| Audio | Codec | Realtek ALC897 High Definition Audio |
| Storage | SATA port | 1 x SATA Gen 3.0, up to 6Gb/s |
| mSATA | 1 x Full-size (shared with Mini PCIe slot) | |
| Rear I/O | Display Port | 1 |
| HDMI | 1 | |
| USB3.2 gen1 | 4 | |
| Ethernet | 2 | |
| Internal Connector | Serial Port | 6 x header (2 x RS232/422/485, 4 x RS232) |
| USB2.0 | 2 x header support additional 4 x USB2.0 connectors | |
| Chassis fan header | 1 | |
| Chassis intrusion header | 1 | |
| Front panel audio header (AAFP) | 1 | |
| System panel header | 1 | |
| Clear CMOS jumper | 1 | |
| SATA power header | 1(4-pin) | |
| LPC Debug header | 1 | |
| GPIO header | 1 (8 bit) | |
| SMBus header | 1 | |
| I2C header | 1 | |
| power connector | 1 x 4-pin ATX power connector | |
| Watchdog Timer | H/W | yes |
| Security | TPM | 1 x SPI TPM header |
| Power | Power Type | DC input |
| Voltage | 12-24V DC input | |
| Operating System | Microsoft Windows | Windows® 10 (64bit ) / Win10 Iot Enterprise |
| Linux | Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE | |
| Environment | Operating Temperature | 0~60° C |
| Non-Operating Temperature | -40~85° C | |
| Relative Humidity | 0%~85% | |
| Dimension | Form Factor | 3.5 ”, 146 x 105 mm |
| Certification | Safety | CE, FCC |
