The IMB-X1313 is the workstation variant of the IMB-1313: 10th Gen Intel Core processors on the W480E chipset with ECC memory support, four DDR4 slots up to 128 GB, eight SATA3 ports and vPro.

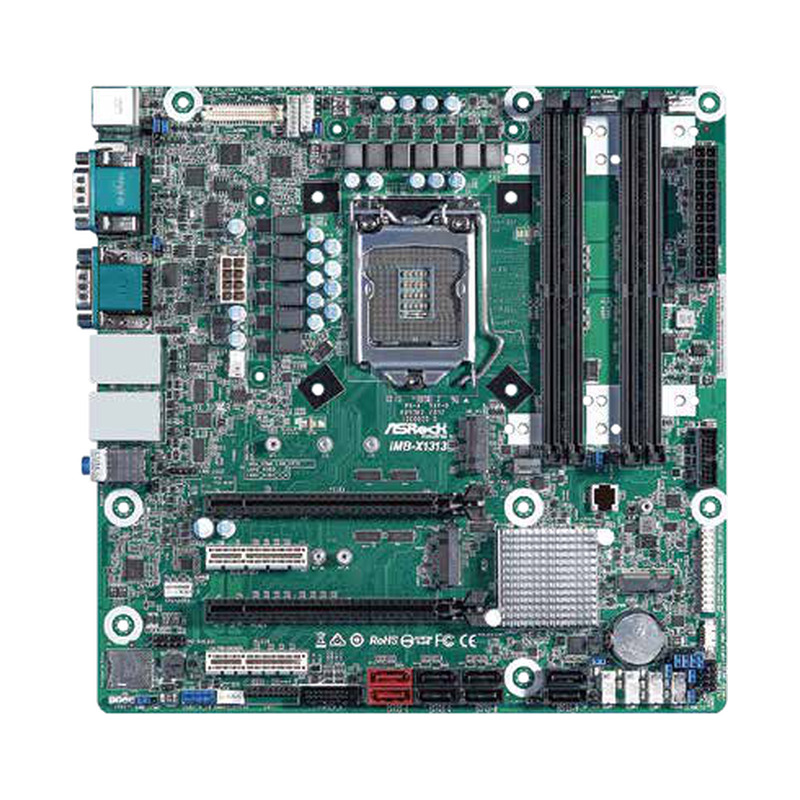

The ASRock Industrial IMB-X1313 is an industrial Micro-ATX motherboard (24.4 x 24.4 x 3.6 cm) for 10th Gen Intel Core processors (Comet Lake-S) with up to 125 W TDP in the LGA 1200 socket. It is based on the Intel W480E workstation chipset; the sister variant IMB-1313 uses the Q470E.
Four 288-pin Long-DIMM slots take up to 128 GB of DDR4-2933 in dual-channel mode (32 GB per module) and are designed for ECC and non-ECC memory. This makes the board the choice for applications that require error correction in main memory.
The expansion options are extensive: two PCIe Gen3 slots (single x16 or split x8/x8, with riser support for x8/x8 and x8/x4/x4), two PCIe x4 slots (Gen3), two M.2 Key M, one M.2 Key E for WLAN and one M.2 Key B (3042/3052) with SIM socket for 4G/5G. Eight SATA3 ports with Intel SATA RAID 0/1/5/10 also cover larger storage arrays.
Graphically, up to three displays are driven simultaneously via HDMI 2.0a, DisplayPort 1.2, VGA and LVDS. Networking is handled by an Intel I225LM with 2.5 GbE and an Intel I219LM with 1 GbE including AMT and vPro support. A TPM 2.0 chip is onboard, Intel VMD RAID 0/1/5/10 is supported. Power is supplied via ATX (8+24-pin), the operating temperature range is 0 to +60 degrees Celsius.
