NXP® i.MX 8M ARM Cortex-A53 core, 4GB LPDDR4, HDMI, Dual LAN, 16G eMMC,
1*M.2 E Key slot, 1*Micro SD Card, 3*USB 3.2 Gen 1
|
Processor System |
CPU | NXP® i.MX 8 M ARM Cortex-A53 core |
| MAX.SPEED | 1.3 GHz | |
| L2 Cache | 1MB | |
| Chipset | Integrated | |
| Memory | Technology | LPDDR4 |
| Max. | 4GB on board memory | |
| Display | HDMI | 1, Supports HDMI 2.0 up to 3840 x 2160 @ 60 Hz |
| MIPI DSI | 1, Supports MIPI DSI (2 lane) up to 1920 x 1080 @ 60 Hz | |
| Expansion Slot | M.2 | 1 x M.2 2230 E Key for BT/WiFi module (cooperate with Google EdgeTPU Module) |
| Others | 1 x Micro-SD Card connector | |
|
Ethernet |
Speed | 10/100/1000Mbps |
| Controller | 1 x Realtek® RTL8211, 1 x Intel I211-AT | |
| Connector | 2 x RJ-45 | |
| Storage | eMMC | 1 x 16GB onboard eMMC |
| Front I/O | HDMI | 1 |
| USB3.2 Gen1 | 2@Type A, 5V/2A | |
| 1@Type C OTG, 5V/1.5A | ||
| Ethernet | 2 | |
| Power Button | 1 | |
| Reset Button | 1 | |
| Rear I/O | Power Connector | DC Power input |
| Internal Connector | GPIO Header | 1 x 40-pin headers includes:
– up to 6 x GPIO pins – up to 2 x I2C bus – up to 1 x UART – up to 2 x PWM – up to 1 x PCM/I2S – 2 x 5V power pins – 2 x 3.3V power pins – 8 x ground pins |
| Micro-SD Card | 1 Slot | |
| TPM Header | 1 (14-1 pin) | |
| MIPI DSI | 1, Supports MIPI DSI (2 lane) up to 1920 x 1080 @ 60 Hz | |
| MIPI CSI | 2, support two MIPI-CSI camera inputs (4-lane each) | |
| I2C Header | 1 (5-1 pin) | |
| Watchdog Timer | S/W | Set up by software |
| Security Module | TPM | TPM 2.0 power by Nuvoton NCPT 750 (Optional) |
| Crypto Module | Cloud security power by Microchip ATECC608A/NXP SE050 (Optional) | |
| Manageability | WOL | |
| Power | Power Type | DC power input |
| Voltage | 12-24V DC input | |
| Operating System | Linux | Linux Yocto |
| Microsoft Windows | Windows 10 IoT Core | |
|
Environment |
Operating Temperature | -20~60°C |
| Non-Operating Temperature | -40~85°C | |
| Relative Humidity | 10~95% | |
| Dimension | Form Factor | 100mm x 72mm x 21mm |
| Certification | Safety | CE, FCC |

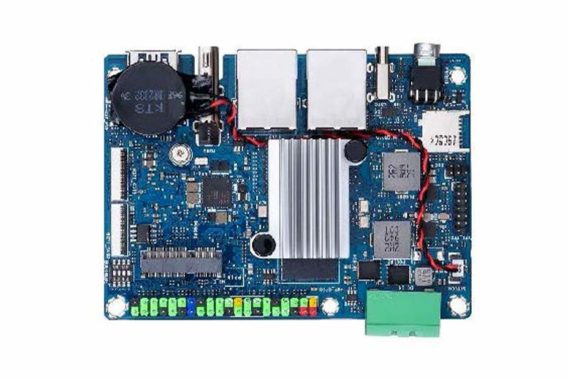

IMX8P-IM-A
Size: Pico-ITX
| Model Name | Description |
| IMX8P-IM-A | NXP® i.MX 8M ARM Cortex-A53 core, 4GB LPDDR4, HDMI, Dual LAN, 16G eMMC, 1*M.2 E Key slot, 1*Micro SD Card, 3*USB 3.2 Gen 1, 12-24V DC |
| Part Number | Description |
| 0C011-00212000 | WIFI5 AC+BT5.0(2*2)M.2 2230 |
| 0C011-00211000 | WIFI5 AC+BT5.0(2*2)M.2 2230 |
| Part Number | Description | Quantity |
| 13050- | Screw pack | 1 |
