Mini-ITX, LGA1151 socket for the 9th/8th Gen CPU, Q370 chipset, 2*SO-DIMM.
1*PCIe x16, 2*DP, DVI-D, LVDS, eDP, 2*M.2 slot
Features
Specifications
|
Processor System |
CPU |
LGA1151 socket for the 9th/8th Generation Intel® Core™ i 7/ i5/ i 3/ Pentium® / |
|
Celeron® processors supports 14nm CPU, Max. 65W TDP |
||
|
CHIPSET |
Intel® Q370 chipset |
|
|
Memory |
Technology |
DDR4 2666/2400/2133 MHz |
|
Max. |
64GB |
|
|
Socket |
2 x SO-DIMM |
|
|
Display |
DVI-D |
1, Supports up to 1920 X 1200 @ 60 Hz |
|
Display Port |
2, Supports DP 1.2a up to 4096 x 2160 @ 60 Hz |
|
|
LVDS |
1, Supports up to 1920 x1200 @ 60Hz |
|
|
Embedded Display Port |
1, 2 lanes supported (co-lay with LVDS), Supports up to 1920 x1200 @ 60Hz |
|
|
Multi Display |
DVI-D+DP+LVDS, DP+DP+LVDS, DP+DP+DVI-D, DVI-D+DP+eDP, DP+DP+eDP |
|
|
Expansion Slot |
PCIe |
1 x PCIe 3.0/2.0 x16 s lot |
|
M.2 |
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device (support Intel® CNVi,PCIe) 1 x M.2 Socket 3 with M key, type 2242/2260/2280(PCIe & SATA mode) |
|
|
Ethernet |
Speed |
10/100/1000Mbps |
|
Controller |
1 x Intel® i219LM, 1 x Intel® i211AT |
|
|
Connector |
2 x RJ-45 |
|
|
Audio |
Codec |
Realtek ALC887-VD2 High Definition Audio |
|
Connector |
Line-Out, Line-In |
|
|
Storage |
SATA port |
4 x SATA Gen 3.0, up to 6Gb/s |
|

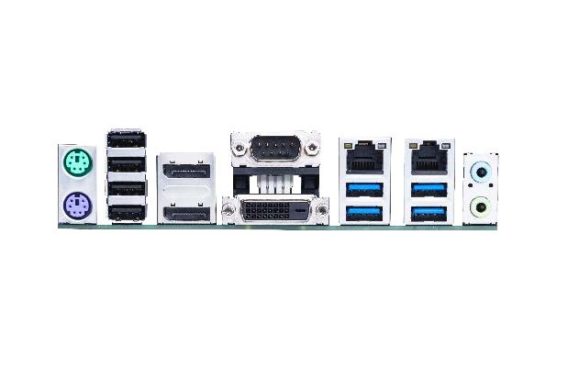

Rear I/O |
DVI-D |
1 |
|
Display Port |
2 |
|
|
USB3.2 Gen1 |
4 |
|
|
USB 2.0 |
4 |
|
|
Ethernet |
2 |
|
|
Serial Port |
1(RS232/422/485) |
|
|
Audio jack |
2 |
|
|
PS/2 |
1 x Keyboard Port, 1 x Mouse Port |
|
|
Internal Connector |
Serial Port |
3 (RS232) |
|
USB3.2 Gen1 |
1 X Header Support Additional 2 X USB3.2 Gen1 Connectors , 1 X Stick Socket |
|
|
USB2.0 |
1 X Header Support Additional 2 X USB2.0 Connectors |
|
|
CPU Fan Connector |
1 (PWM Mode) |
|
|
Chassis Fan Header |
1 (PWM+DC Mode) |
|
|
Chassis Intrusion Header |
1 |
|
|
Front Panel Audio Header (AAFP) |
1 |
|
|
System Panel Header |
1(10-1 Pin) |
|
|
Clear CMOS Jumper |
1 |
|
|
Speaker Connector |
1(4-pin) |
|
|
LPC Debug Header |
1 |
|
|
S/PDIF Header |
1 |
|
|
I2C Header |
1 |
|
|
GPIO Header |
1 (8 Bit) |
|
|
AT/ATX Select Header |
1 |
|
|
Power Connector |
1 X 4-pin ATX Power Connector, 1 X 24-pin ATX Power Connector |
Specifications
|
Watchdog Timer |
H/W |
YES |
|
Security |
TPM |
1 x SPI TPM header |
|
Power |
Power Type |
both ATX mode and DC in |
|
Voltage |
DC in 12V |
|
|
Operating System |
Microsoft Windows |
Windows® 10 (64bit ) / Win10 IoT Enterprise |
|
Li nux |
Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE |
|
|
Environment |
Operating Temperature |
0~60° C |
|
Non-Operating Temperature |
-40~85° C |
|
|
Relative Humidity |
0%~85% |
|
|
Dimension |
Form Factor |
Mini-ITX, 170 x 170 mm |
|
Certification |
Safety |
CE, FCC |
Block Diagram
