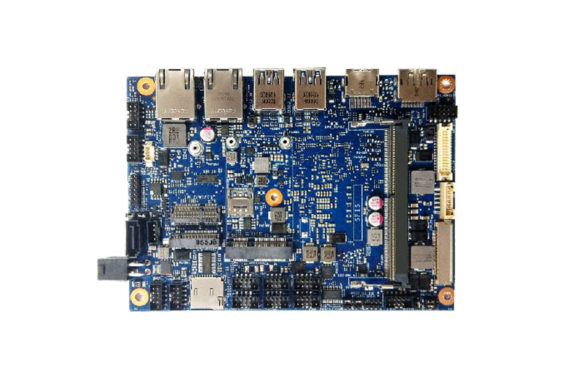

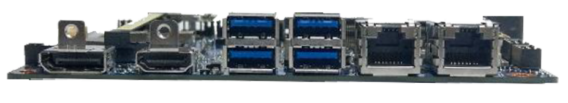

3.5” form factor, Intel® Core™ i3-8145U/i5-8265U/i7-8565U Processor, DDR4 SO-DIMM, DP , HDMI, LVDS, Dual-LAN, Multiple COM, 12-24V DC

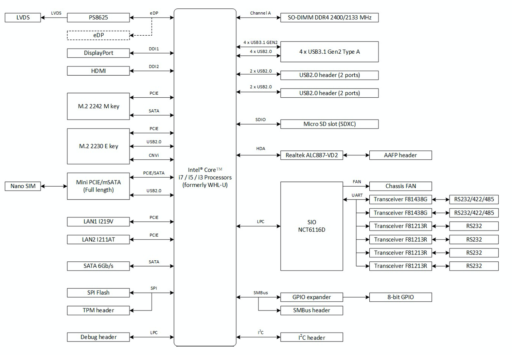

| CPU | Intel® Core™ i3-8145U Processor (SoC), 2.1-3.7GHz Dual-core, 4MB Cache Intel® Core™ i5-8265U Processor (SoC), 1.6- 3.9GHz 4-core, 6MB Cache Intel® Core™ i7-8565U Processor (SoC), 1.8- 4.5GHz 4-core, 8MB Cache |
| Chipset | Integrated |
| Memory | 1 x SO-DIMM, max. 16GB, DDR4 2400/2133 MHz, non-ECC, un-buffered memory |
| Expansion Slots | 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device |
| 1 x M.2 Socket 3 with M key, type 2242 (PCIe x2 mode & SATA mode)
1 x Full-Length Mini PCIe slot with an on-board Nano-SIM socket |
|
| Storage | 1 x SATA 6Gb/s connecter |
| 1 x mSATA slot (shared with Mini PCIe)
1 x Micro SD Card slot (on-board) |
|
| Display | Multi-VGA output support :DP/HDMI/LVDS ports, UHD 620 |
| Supports up to 3 displays simultaneous under OS | |
| USB | 4 x USB3.1 Gen2 Type-A ports
2 x USB2.0 headers support additional 4 x USB2.0 connectors |
| Serial Port | 6 x COM headers (2 x RS-232/422/485, 4 x RS-232) |
| Erthnet | Dual RJ45 connectors (1 x Intel® I219V, 1 x Intel® I211AT) |
| Audio | Realtek ALC887-VD2 High Definition Audio CODEC |
| Internal I/O | 1 x Chassis fan header
1 x Chassis intrusion header 1 x Front panel audio header (AAFP) 1 x System panel header 1 x Clear CMOS jumper 1 x SATA power header 1 x LPC Debug header 1 x SMBus header 1 x I2C header 1 x 4-pin power connector |
| GPIO | 1 x 8bit GPIO header |
| TPM | 1 x TPM header |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ
Flash 3, Last Modified Log, ErP |
| Watch dog timer | Yes |
| Power requirement | 12-24V DC input |
| Operation Temperature | -20~60℃ |
| Non-Operation Temperature | -40~85℃ |
| Relative Humidity | 0%~85% |
| Operating System Support | Windows® 10 (64-bit) / Windows® 10 IoT Enterprise / Linux |
| Form Factor | 3.5”, 146 x 105 mm |
| Model Name | Description |
| C381S-IM-AA | 3.5” form factor, 8th Gen Core™ i3-8145U Processor, DDR4 SO-DIMM, DP, HDMI, LVDS, Dual-LAN, Multiple COM, 12-24V DC |
| C582S-IM-AA | 3.5” form factor, 8th Gen Core™ i5-8265U Processor, 3.5” |
| C785S-IM-AA | form factor, 8th Gen Core™ i7 – 8565U Processor |
| Part Number | Description |
| 14011-03700400 | COM Port Cable, 1 Port, 28mm |
| 14013-00260000 | SATA cable with SATA power |
| 14011-03740000 | Power Button Cable with LED |
| 14011-03750000 | USB 2.0 Cable, 2 ports, 70mm |
| Part Number | Description |
| 15000- | M.2 screw pack |
| 15000- | Driver DVD |
